GaiaRay Portable Solar Power Station With LiFePO4 Battery Backup
GaiaRay Portable Solar Power Station With LiFePO4 Battery Backup
Couldn't load pickup availability
Keep essential devices powered away from a wall outlet with a portable GaiaRay station offering AC, USB, DC, and solar charging.
- Three power options: Choose 100W with 76.8Wh, 300W with 230Wh, or 500W with 460Wh LiFePO4 battery capacity; their sizes are 160 × 100 × 143mm, 211 × 160 × 196mm, and 271 × 172 × 220mm, respectively.

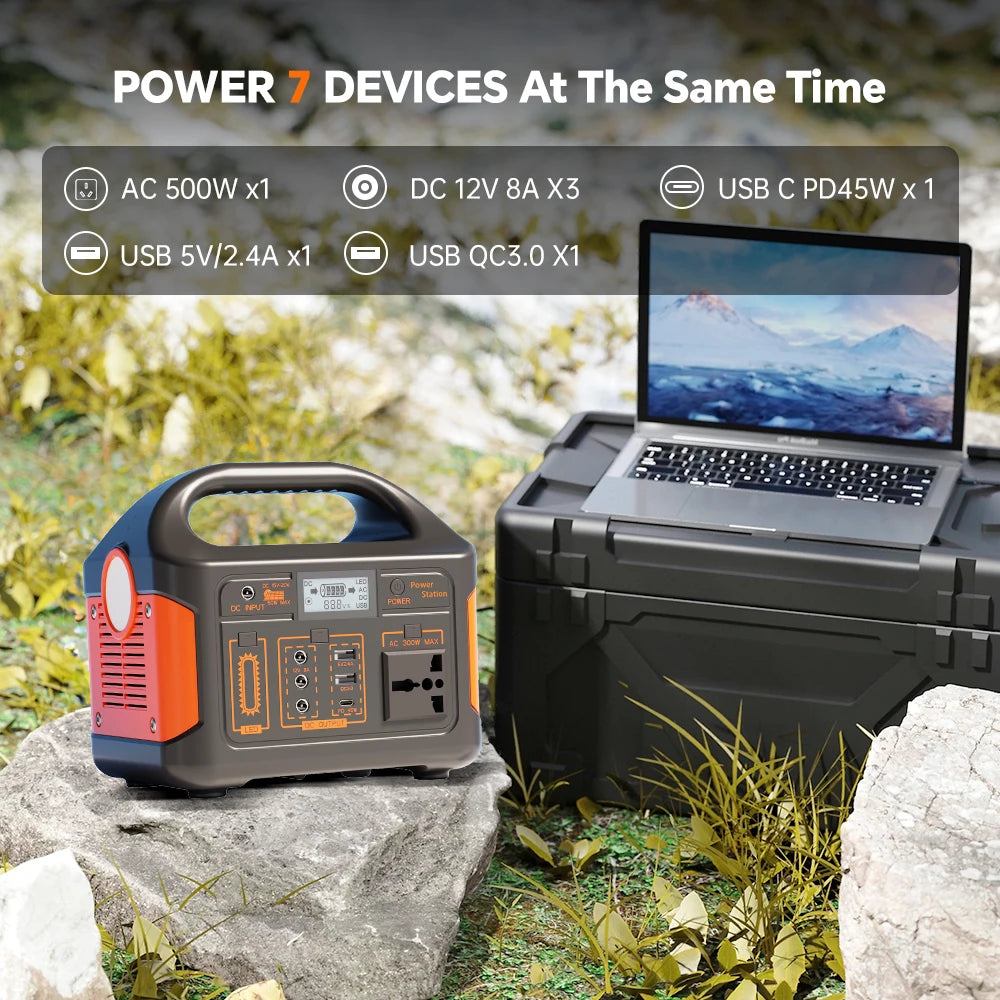

- Multiple outputs: Use universal AC sockets rated at 110V or 220V, plus USB and DC ports; AC output is listed at 50Hz or 60Hz with modified or pure sine wave options.
- Solar charging: Connect a 15–20V solar panel, with maximum charging input of 30W, 50W, or 90W across the range.
- Useful monitoring and protection: The LCD shows battery voltage and charge or discharge status, while built-in protections cover low and high voltage, overload, overheating, and short circuits; the cooling fan’s noise is under 45dB at 1 metre.
Rated Power |
100W |
300W |
500W |
Output Waveforr |
Modified sine wave |
Pure Sine Wave |
|
AC Output Voltage |
110V,220V |
||
AC Output Frequency |
50Hz/60Hz ± 0.5Hz |
||
Conversion Efficiency |
Maximum Value>90% |
||
Charging interface |
Charger Port and Solar Panel Charging Port DC5521(Built in solar intelligent controller) |
||
AC Output Socket |
Universal Socket |
||
DC Output Voltage |
DC5V 2.4A, 2 * USB;DC12V 3A, 2 * DC5521 |
USB 5V 2.4A; QC 3.0; PD 45W; DC12V8A; 3 * DC5521 Port |
|
LED Light States |
LED bright, half bright, flashing,LED off 4 states |
LED high beam,low beam. Bight, half Bight, fishing LED of 6 states |
|
Battery Type |
LiFePO4 |
||
Battery Capacity |
76.8Wh |
230Wh |
460Wh |
Solar panel charging |
15V-20V Max 30W |
15V-20V Max 50W |
15V-20V Max 90W |
Charging Current |
Maximum Value 2A |
Maximum Value 2.5A |
Maximum Value 6A |
AC Charqer Specifications |
5v 2A |
14.6V 2A |
16V 5A |
Product size (mm) |
160*100*143mm |
211*160*196mm |
271*172*220mm |
Outer packaging size (mm) |
200*100*150mm |
260*160*200mm |
300*200*260mm |
Charging Time |
After full discharge,the battery capacity reaches 80% after 5 hours OT |
||
LCD |
Battery Voltage, State of Charge, State of Charge, State of Discharge |
||
Heat Dissipation |
Intelligent Temperature Control Cooling Fan |
||
Noise |
1Meter Distance <45dB |
||
Protection Functions |
Low Voltage, Over voltage, OverLoad, Over Temperature, Short Circuit |
||
